Clinical Summary: Bucket-Handle Meniscal Tear
A detailed breakdown of MRI findings, anatomical pathology, and surgical prognosis.
Condition Overview
A bucket-handle tear is a severe type of meniscal injury where a large vertical tear allows a strip of the meniscus (the "handle") to flip over and displace into the intercondylar notch of the knee.
This mechanical blockage frequently causes the knee to "lock" and prevents full extension, requiring surgical intervention to resolve.
Clinical Context
Scenario: Delayed Treatment
Patient played a season of basketball and completed 90 days of PT prior to accurate diagnosis.
- Decreased Repair Viability: Repeated high-impact sheer forces likely crushed the displaced fragment, making suturing highly unlikely.
- Cartilage Risk: Weight-bearing without the meniscal shock absorber accelerates wear on articular cartilage.
- PT Silver Lining: The 90 days of physical therapy likely preserved quadriceps and gluteal strength, which can significantly accelerate post-op recovery.
Annotated MRI Pathology

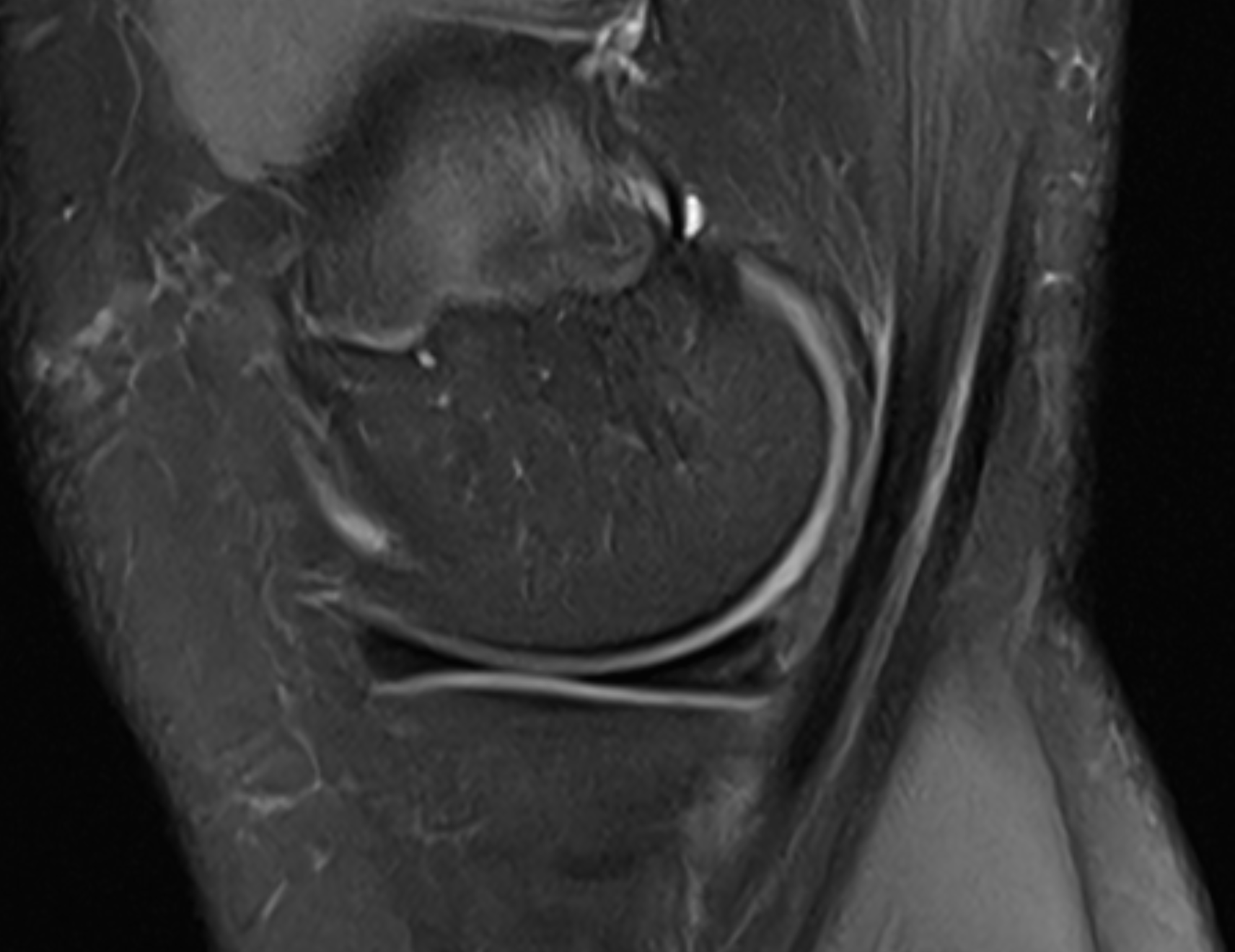

The Double PCL Sign
View: Sagittal (Midline)
What the marker shows: The native Posterior Cruciate Ligament (PCL) is the top dark band. The red marker highlights the second band resting directly beneath it.
This lower band is the torn inner rim of the meniscus that has migrated into the center of the knee joint.

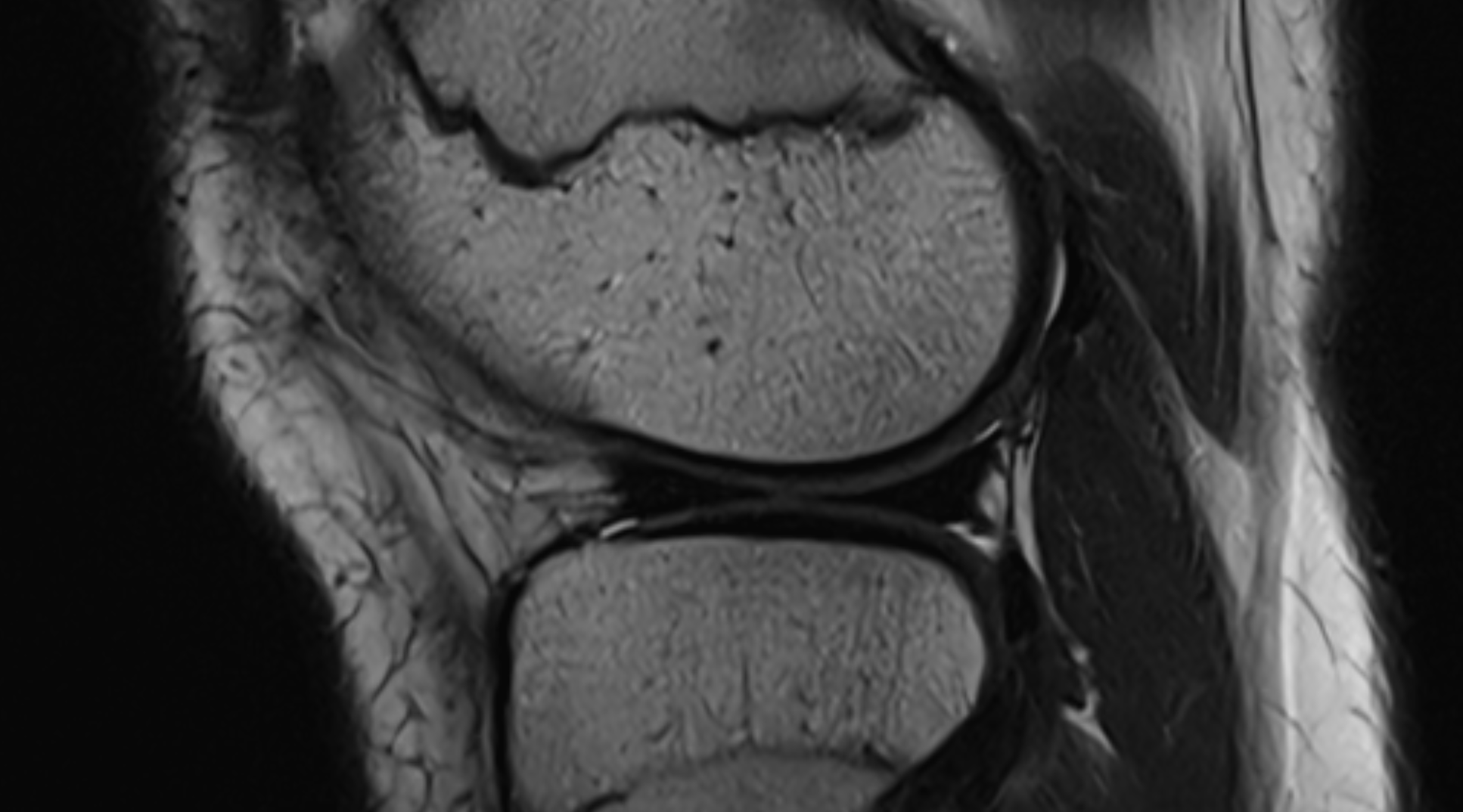

The Absent Bowtie Sign
View: Sagittal (Periphery)
What the marker shows: The empty joint space between the femur and tibia where the thick "bowtie" shaped meniscus should be.
Because the cartilage has torn and flipped into the center (creating the double PCL), this outer edge is left blunted and missing its mass.

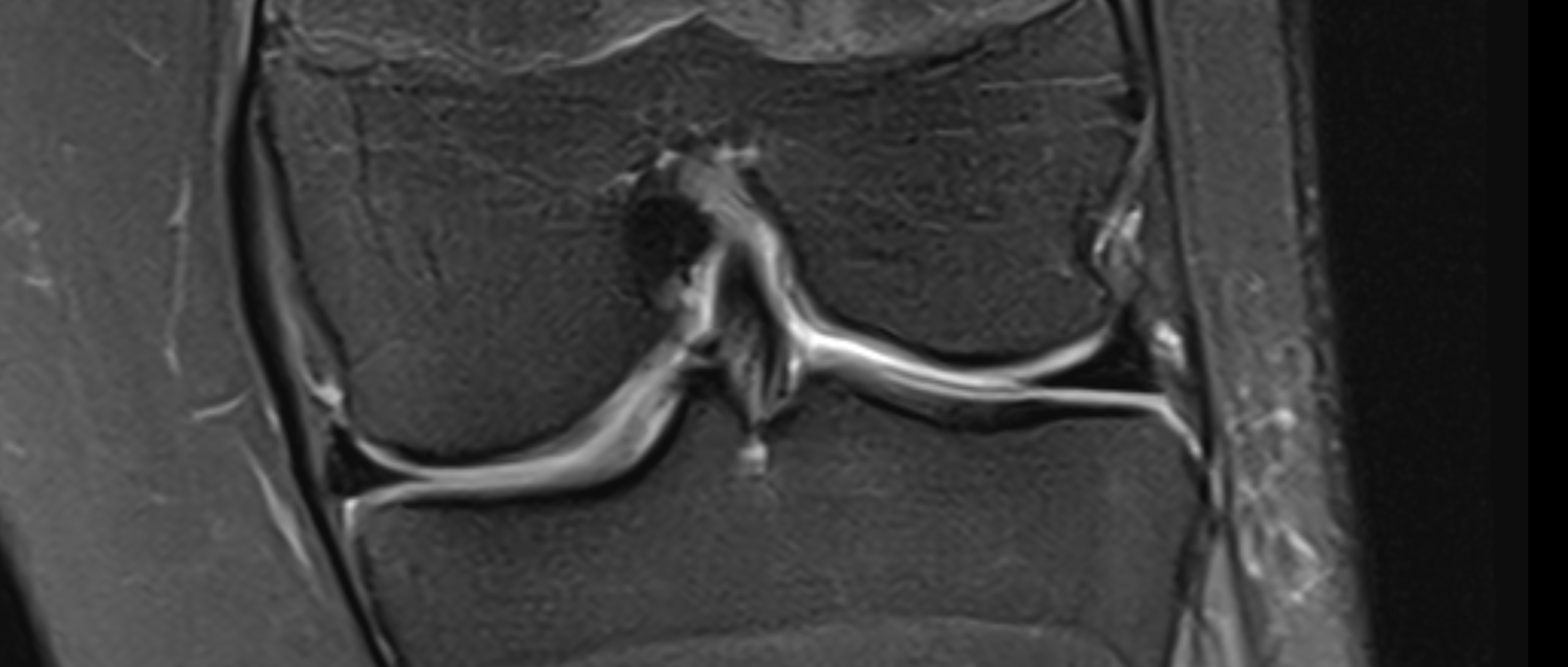

Fragment in the Notch
View: Coronal (PD FS)
What the marker shows: The central cave-like space (intercondylar notch) should be empty except for the normal cruciate ligaments.
The marker points to the thick, horizontal dark band of meniscal tissue obstructing the bottom of the notch.

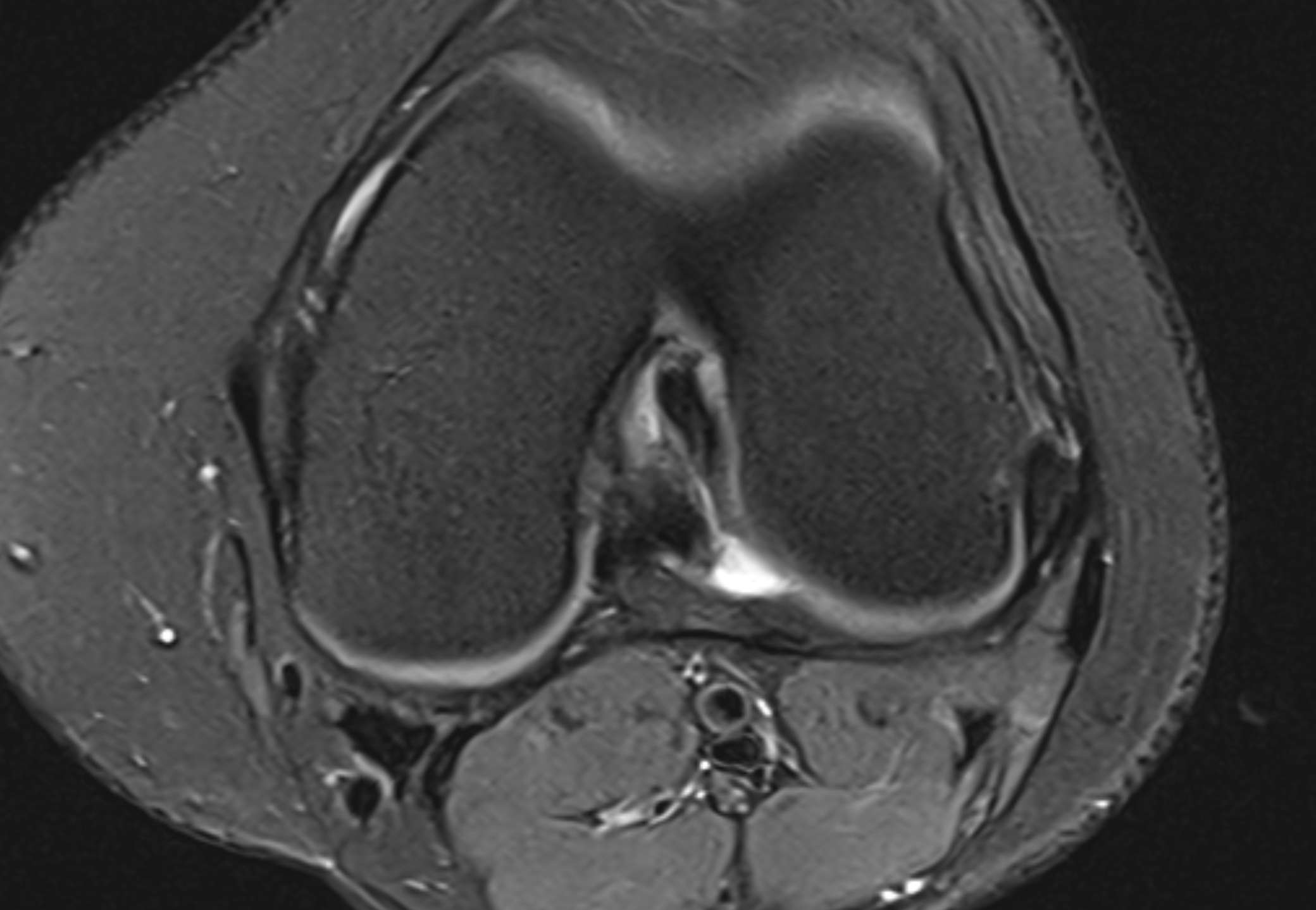

Axial Defect Trace
View: Axial (Top-Down)
What the marker shows: Looking top-down, the meniscus should form a smooth "C" around the outer edge of the bone.
The marker highlights the severed strip of tissue snaking erratically through the central joint space, confirming the severity of the tear.
Surgical Pathways & Rehabilitation
Partial Meniscectomy
Surgical removal of the unviable torn tissue. Highly likely given the delayed diagnosis and sports activity.
- 0-2 Weeks: Immediate weight-bearing, reduce swelling.
- 2-4 Weeks: Resume daily activities.
- 4-6 Weeks: Full clearance for sports/high impact.
Meniscal Repair
Suturing the tissue back together. Requires viable, healthy tissue (less likely in this scenario).
- 0-6 Weeks: Hinged brace, strict crutches.
- 6-12 Weeks: Intensive PT for atrophy.
- 3-6 Months: Slow return to pivoting sports.
